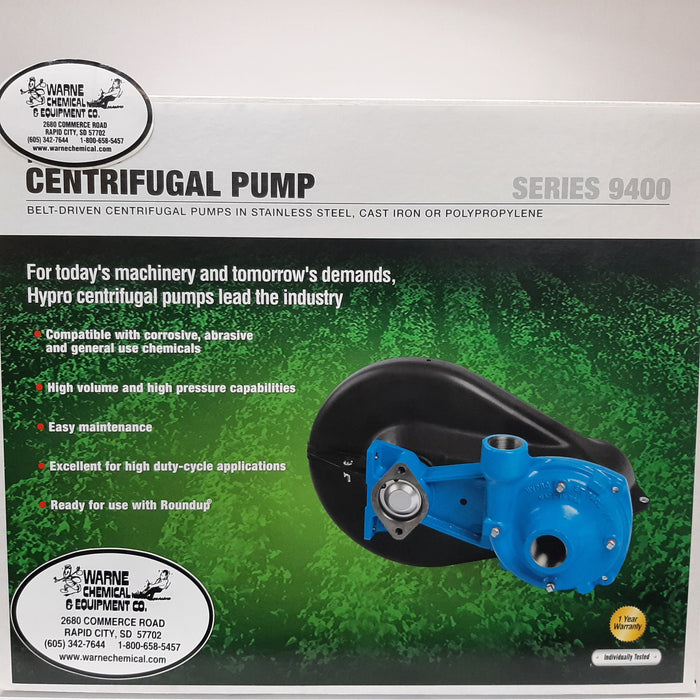

Series 9400 Belt Drive Centrifugal Pump

Warne also carries a wide variety of larger pumps that are designed for industrial and agricultural spraying and application of various fluids including water, insecticides, herbicides, wettable powders, emulsives, liquid fertilizers and much more! This belt-driven pump has a body built of durable and chemical resistant cast iron and stainless steel housing to protect against corrosion and ensure smooth performance.

This Belt-Driven Centrifugal pumphas a spring-loaded belt tensioner, stainless steel wear ring and stainless steel standard pump shaft. Pump shaft rotation is counter clockwise when looking at the end of shaft.

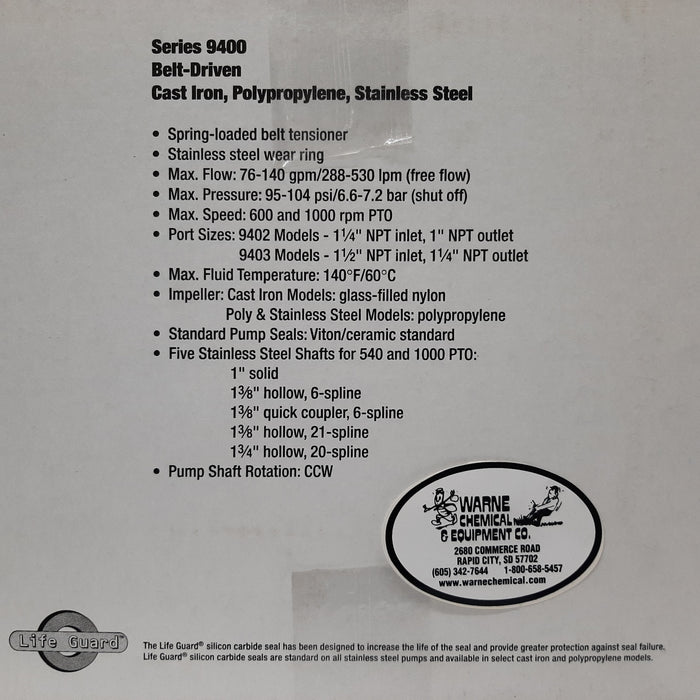

*Series 9400 Belt Drive Centrifugal Specifications:

Max GPM: 76     Max PSI: 96  Max RPM: 1000

Cast Iron Pump with Positive Timing Belt Drive

1 3/8" PTO Shaft NPT Ports: 1 1/4" Inlet  1" Outlet

*Additional model and specifications please see below:
